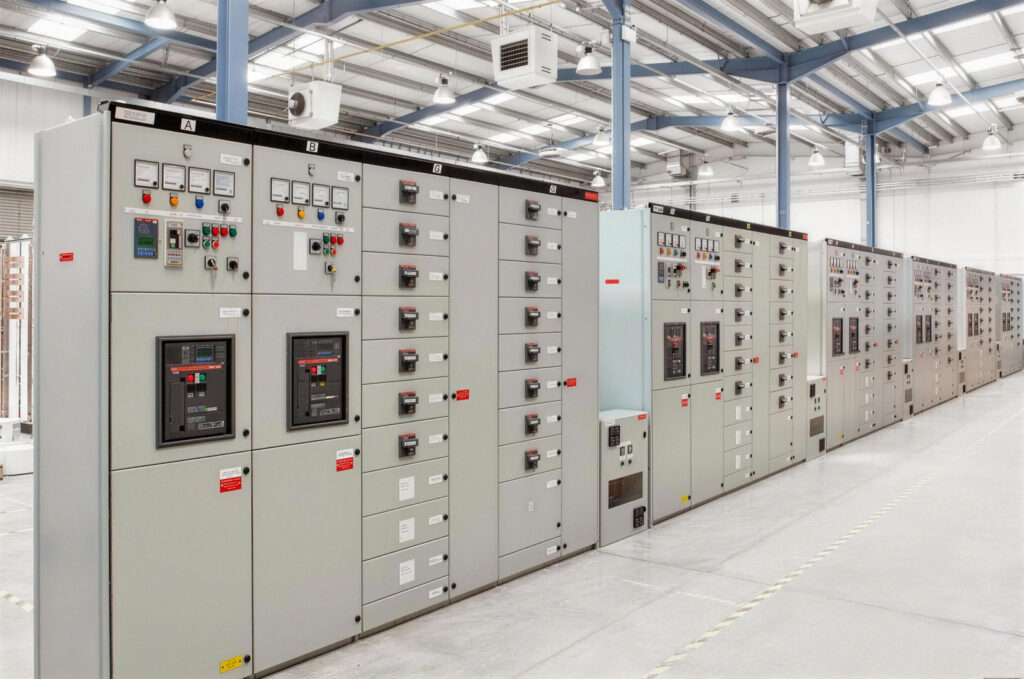

Switchgear Online Monitoring

Introduction: In the operation system of modern power grids, switch cabinets, as the core control and protection equipment, their operational stability directly affects the safety of the power grid. During the operation of switch cabinets, partial discharge (abbreviated as PD) is often an “alarm signal” for early faults such as insulation aging and structural defects. How to achieve real-time monitoring and early warning of these “minor signals” has become an important issue in power operation and maintenance.

1. Background

Medium‑ and high‑voltage switchgear are critical components in power transmission and distribution networks. Failures such as partial discharge, overheating, insulation degradation, mechanical wear, and moisture intrusion can lead to severe outages or safety hazards. A switchgear online monitoring system provides continuous, real‑time visibility into equipment health, enabling predictive maintenance and reducing operational risks.

2. System Working Principle

– Sensors installed inside or near switchgear collect electrical, thermal, mechanical, and environmental data.
– Data is transmitted to a data acquisition unit (DAU) for preprocessing.
– Communication modules send the processed data to a central monitoring platform.
– The platform performs analytics, trend evaluation, and fault diagnosis.
– Alerts and reports are automatically generated for maintenance teams.

Simplified System Architecture：

[Switchgear Sensors] → [Data Acquisition Unit] → [Communication Network] → [Monitoring Platform] → [Alerts & Diagnostics]

3. System Components

**Temperature & Humidity Sensors** – Detect overheating and moisture intrusion.
**Partial Discharge Sensors (UHF/AE/TEV)** – Identify insulation defects and discharge activity.
**Mechanical Vibration Sensors** – Monitor mechanical wear and operating mechanism health.
**Gas Pressure Sensors (for GIS/GIL)** – Detect SF6 leakage or pressure abnormalities.
**Data Acquisition Unit (DAU)** – Aggregates and preprocesses sensor data.
**Communication Module** – Supports fiber‑optic, industrial Ethernet, or wireless networks.
**Central Monitoring Platform** – Provides dashboards, alarms, and predictive analytics.

4. Key Advantages

Early detection of insulation and mechanical faults
Reduced downtime and improved operational reliability
Enhanced safety for personnel and equipment
Predictive maintenance instead of reactive repairs
Suitable for both AIS and GIS switchgear

5. Performance Comparison Table

Parameter	Manual Inspection	Online Monitoring
Monitoring Frequency	Periodic (monthly/quarterly)	Continuous (24/7)
Fault Detection Accuracy	Medium	High (multi‑sensor fusion)
Safety Level	Medium	High
Response Time	Slow	Immediate
Maintenance Mode	Reactive	Predictive

6. Recommended Applications

Medium‑voltage and high‑voltage switchgear rooms
Power substations (35kV–500kV)
Industrial power distribution centers
Smart grid and digital substation projects
Utility asset‑management systems

7. Conclusion

A switchgear online monitoring system significantly enhances equipment reliability and operational safety. By integrating multi‑parameter sensors, intelligent analytics, and real‑time communication, it enables predictive maintenance and reduces the risk of catastrophic failures in power distribution networks.
