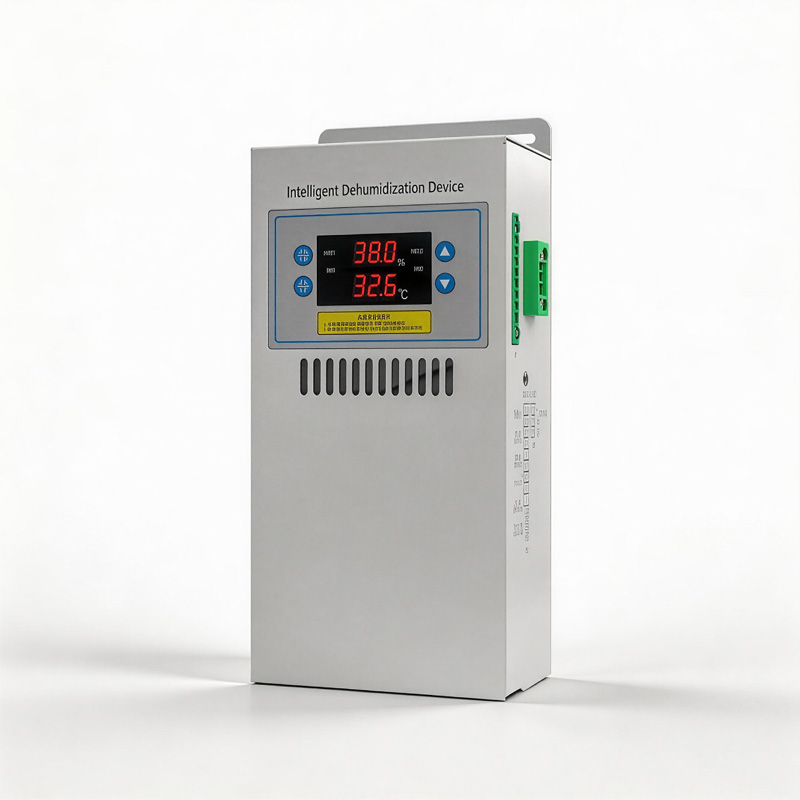

120W Sheet Metal Stainless Steel Semiconductor Dehumidifier (Model A)

120W Efficient Peltier Sheet Metal Stainless Steel Semiconductor Dehumidifier (Model A)

  • This dehumidification device employs a semiconductor-based refrigeration method. Driven by a fan, humid air from a sealed enclosure is drawn into a dehumidification duct; the moisture within the air is then condensed into water by a semiconductor cooling mechanism and subsequently discharged from the cabinet via a drainage tube, thereby achieving highly effective dehumidification.
  • By shifting from a passive approach to condensation prevention to an active method of guiding condensation, this device effectively mitigates various safety hazards—such as equipment aging, diminished insulation strength, breakdown of secondary terminals, material mildew, and corrosion of steel structural components—thereby ensuring the safe and reliable operation of energy storage systems and power grids.
Contact us
Send an Email

Model: OTCS-DB120-A
Operating Voltage: AC 220V / DC 24V (Optional)
Dehumidification Capacity: 1100 mL ± 5% / Day (at T=35°C, RH=85%)
Max. Power Consumption: 120 W
Housing Material: Sheet Metal / Stainless Steel
Dehumidification Temperature Range: 5°C – 55°C
Operating Temperature Range: -30°C – 55°C
Applicable Volume: 2 – 3 m³
Dimensions: 305 x 126 x 70.5 mm (H x W x D)
Mounting Method: Wall-mounted / DIN Rail
Communication Interface: RS485 (Optional)
Certification: CE
