By shifting from a passive approach to condensation prevention to an active method of guiding condensation, this device effectively mitigates various safety hazards—such as equipment aging, diminished insulation strength, breakdown of secondary terminals, material mildew, and corrosion of steel structural components—thereby ensuring the safe and reliable operation of energy storage systems and power grids.

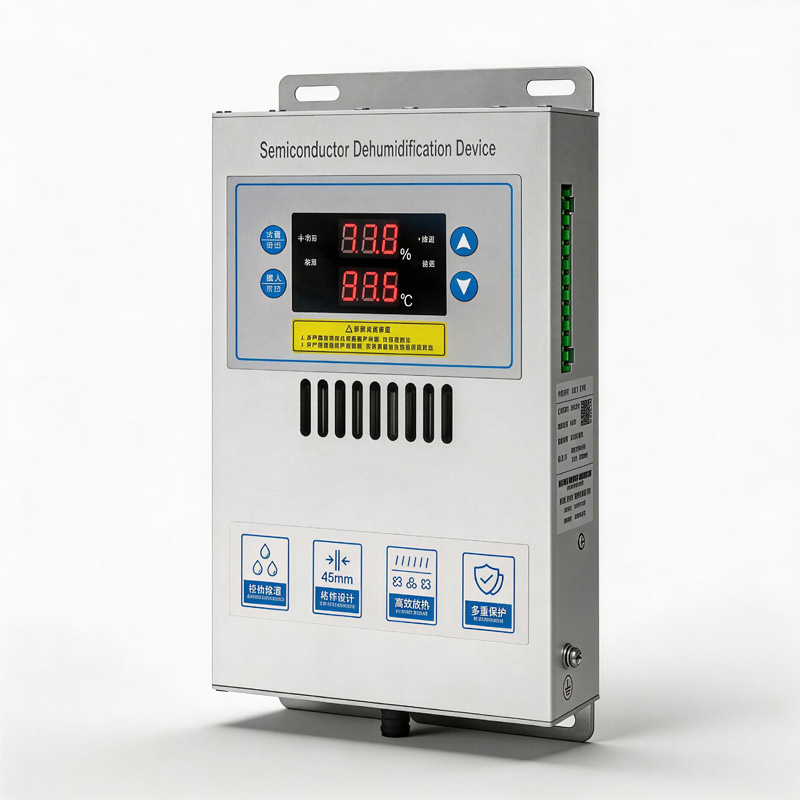

Model: OTCS-2F60
Operating Voltage: AC 220V / DC 24V (Optional)
Dehumidification Capacity: 500 mL ± 5% / Day (at T=35°C, RH=85%)
Max. Power Consumption: 60 W
Housing Material: Aluminum Alloy
Dehumidification Temperature Range: 5°C – 55°C
Operating Temperature Range: -30°C – 55°C
Applicable Volume: 1 – 1.5 m³
Dimensions: 235.6 × 125 × 46 mm (H × W × D)
Mounting Method: Wall-mounted / DIN Rail
Communication Interface: RS485 (Optional)
Certifications/Tests: CE / RoHS 2.0 / REACH / EMC / Salt Spray Test / Dehumidification Capacity Test
