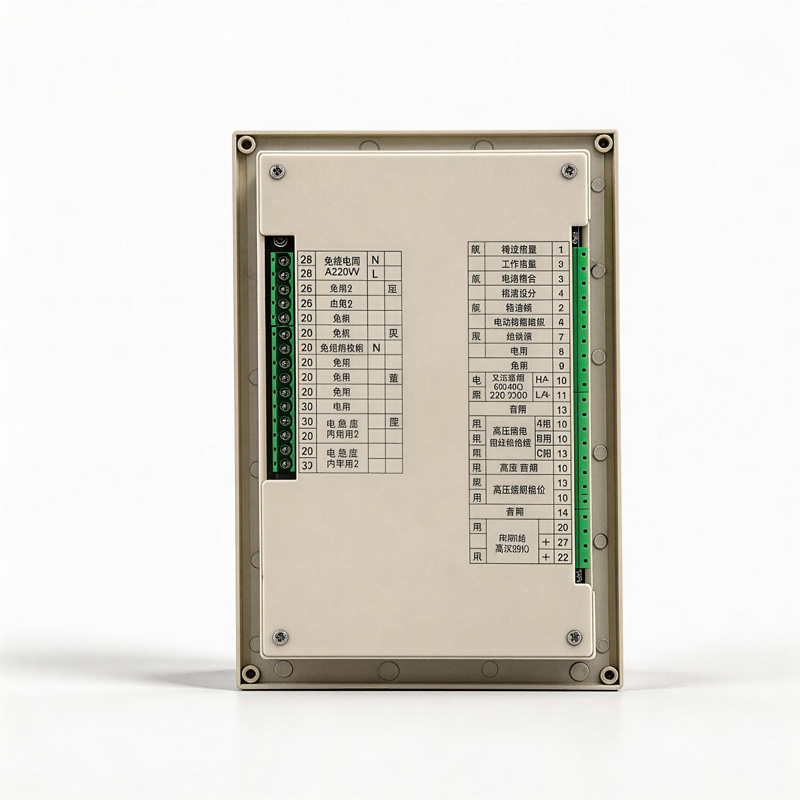

Compact Switch Status Indicator

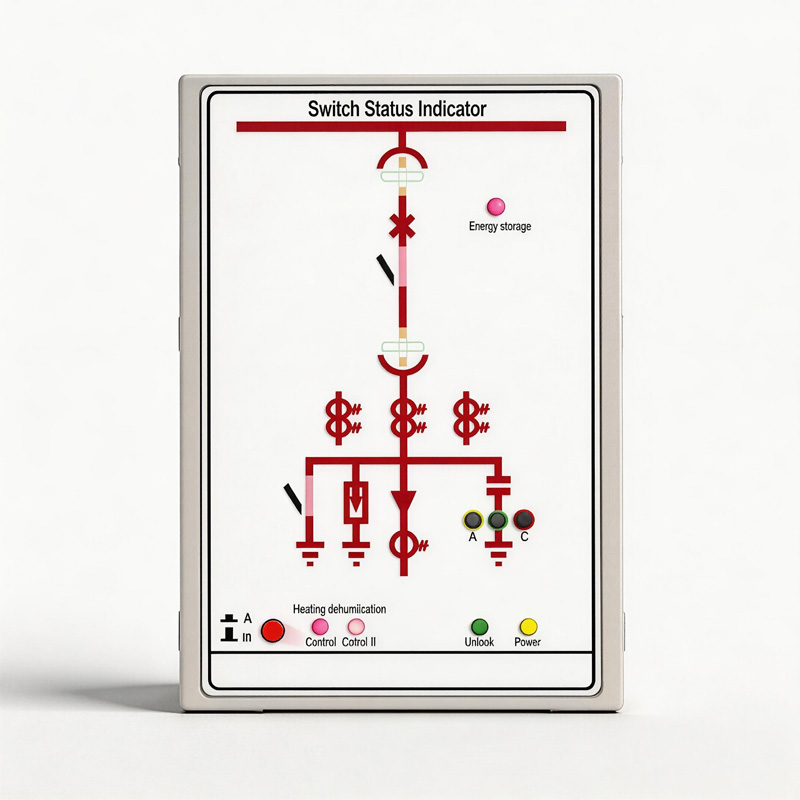

The OT‑KG6000C series switchgear status display device is a newly designed multifunctional and intelligent dynamic simulation indicator developed in line with the technological advancements of medium‑voltage switchgear systems. It integrates multiple functions into a single unit, including primary circuit simulation diagrams, switch status indication, circuit breaker position indication, grounding switch position indication, spring energy‑storage status, high‑voltage live-line indication, high‑voltage live-line interlocking, automatic/manual heating and dehumidification control, humidity control, and RS485 communication. These indication functions can be enabled or disabled independently according to user requirements. Users only need to specify the model and provide the primary circuit diagram when ordering.
The product adopts an integrated installation layout within the switchgear, simplifying the panel structure, improving panel aesthetics, and enhancing switchgear status indication and safety performance.

Operating Environment: –10°C to 50°C; ≤95%RH
Storage Environment: –40°C to 80°C; ≤95%RH
Dielectric Strength: ≥AC2000V between enclosure and terminals
Insulation Resistance: ≥100MΩ between enclosure and terminals

Simulation Display Section
Power Supply Options: DC110V, DC220V, or AC220V (selected when ordering)
Operating Current: <30mA

Isolating Switch Indication:
• Normal state: green “V‑shaped” digital indicator bar lights
• Switch closed: red “V‑shaped” digital indicator bar lights

Spring Energy‑Storage Indication:
• Passive contact closed: red spring symbol lights, indicating energy stored
• Passive contact open: green spring symbol lights, indicating no energy stored
