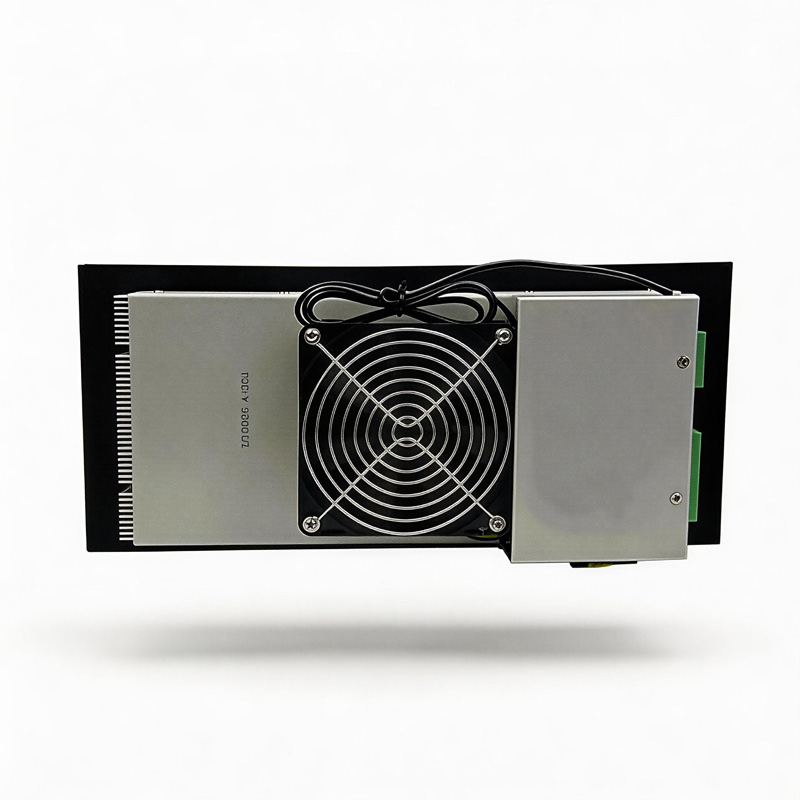

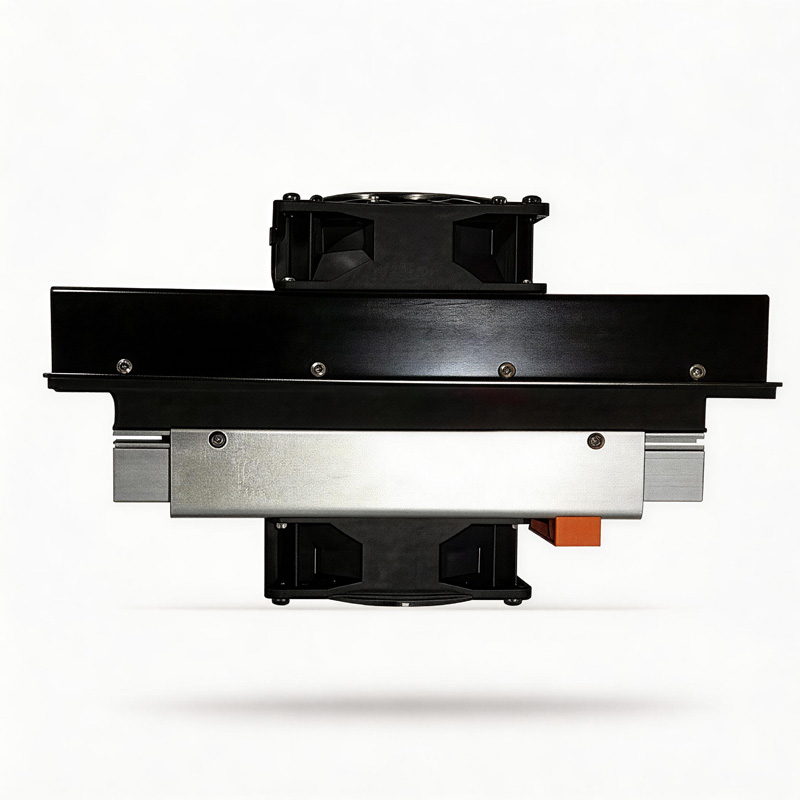

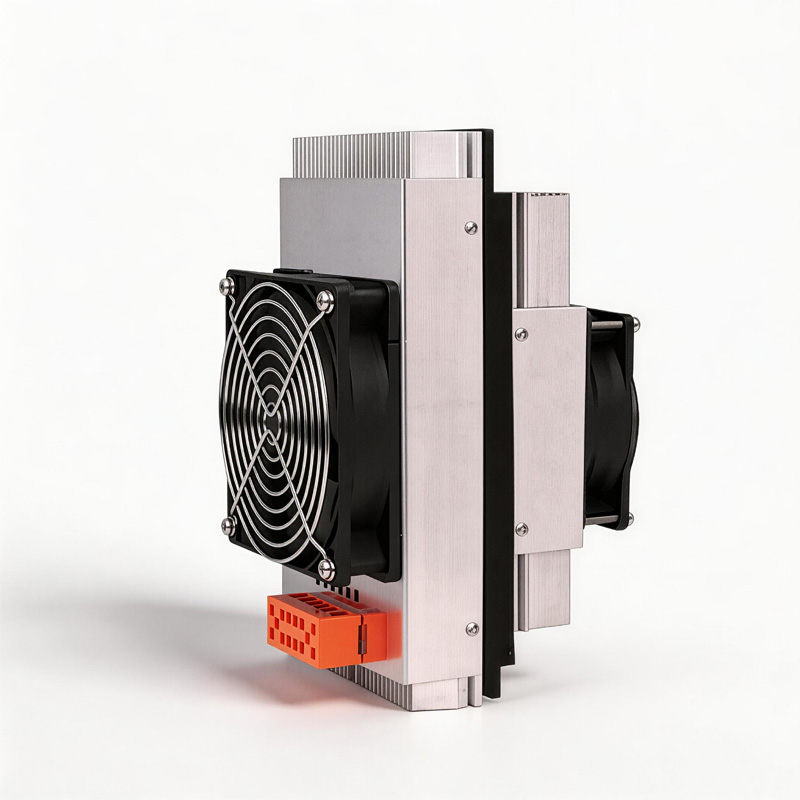

TEC Semiconductor Refrigeration Module

OTTAI 70W DC solid-state cooling units are designed to cool your electronic and electrical controllers, instrumentation, computer terminals, printers, telecommunications equipment, surveillance systems, cameras, laser and optical devices, and many other electronic devices across a wide range of environments. Our cooling units are engineered for use with various cabinets and transit cases. They are available in configurations suitable for both indoor and outdoor DC power applications. The coolers feature a corrosion-resistant aluminum alloy construction.

Features

Highly reliable solid-state construction with a long service life
Maintenance-free; no moving parts (except for fans)
No compressor, refrigerant, or filters
Compact and lightweight design; easy to install and operate
Suitable for indoor or outdoor use (aluminum alloy construction)
Standard models rated for ambient temperatures up to 55°C
Flange-mount or flush-mount installation options
Suitable for vertical installation only
DC power configuration

Technical Specification

ITEM	SPECIFICATIONS
Cooling Capacity	70W
Type	Flush Mount
Protection Class	IP55
Structure	Aluminum Alloy (Housing)
Dimensions	230mm H × 125mm W × 145mm D (Overall Dimensions)
Dimensions	185mm H × 105mm W (Mounting Dimensions)
Operating Range	Up to 50°C (Suitable for High-Temperature Environments)
Temperature Control	Adjustable Thermostat (Optional)
Power Supply	12 VDC @ 12.5 Amps (5°C)
Power Supply	24 VDC @ 6.3 Amps
Standard Configuration	Mounting Hardware and Manual Included
Weight	2.52 kg
Warranty Period	1-Year Warranty
